When it comes to electronics manufacturing, choosing a solder alloy isn’t a one-size-fits-all decision. Each alloy carries its own set of strengths, costs, and suitability for different manufacturing processes and end-use environments.
Whether you’re building smartphones or assembling control modules for vehicles, the solder alloy you use will impact reliability, manufacturability, and compliance. This guide provides a practical look at how solder alloys differ and how to make the right choice for your application.
What is a Solder Alloy?
A solder alloy is a blend of metals designed to create reliable electrical and mechanical connections between metal surfaces. While pure tin can technically be used for this purpose, alloying it with other elements significantly improves performance by adjusting properties like melting point, wetting behavior, strength, and oxidation resistance. Common alloying elements include lead (Pb), silver (Ag), copper (Cu), nickel (Ni), antimony (Sb), and bismuth (Bi).
These combinations are carefully engineered to meet the demands of specific applications—some are better suited for high-reliability aerospace assemblies, while others are optimized for high-volume consumer goods.
Key Factors in Alloy Selection
Cost is always a consideration, particularly in high-volume production. Silver, for example, improves wetting and strength, but it also adds significantly to the material cost. Alloys with lower silver content or silver-free formulations can help reduce expenses without severely compromising performance, depending on the application.
Strength and reliability matter just as much—especially in assemblies that will be subjected to thermal or mechanical stress. In these cases, an alloy with excellent fatigue resistance and joint durability is a better investment, even if it comes with a slightly higher price tag.
The melting temperature of an alloy also plays a critical role. Higher melting points can place more thermal stress on components and substrates, which is especially problematic for temperature-sensitive parts. Meanwhile, a lower melting point can ease processing but may not provide sufficient strength or reliability for demanding environments.
Finally, environmental and regulatory compliance often drives alloy choice. In 2006, the Restriction of Hazardous Substances (RoHS) directive changed the game, limiting the use of lead in electronics sold in many global markets. This led to a widespread transition from traditional tin-lead solder to lead-free alternatives, particularly in consumer and commercial applications. However, some industries—such as aerospace and military—are still exempt and continue to rely on high-reliability leaded solders.
Lead vs. Lead-Free Solder
For decades, the go-to alloy for soldering was Sn63Pb37, a eutectic tin-lead alloy known for its excellent wetting properties, quick solidification, and low melting point of 183°C. These characteristics made it easy to work with, especially in mass production settings. Despite regulatory shifts, it is still in use today in sectors where exemptions apply, largely because of its unmatched performance in terms of reliability and ease of processing.
As the RoHS directive pushed much of the electronics industry toward lead-free soldering, this led to a wave of innovation in alloy development. Manufacturers began exploring new alloying elements in different combinations to identify viable alternatives. In the end, many lead-free alloys tended to have higher melting points and different wetting behaviors, which required adjustments to processes and materials.
A Brief Look at the Generations of Lead-Free Alloys
No single alloy emerged as a perfect substitute for traditional tin-lead. Instead, alloy development progressed in stages, each addressing the limitations of its predecessors.

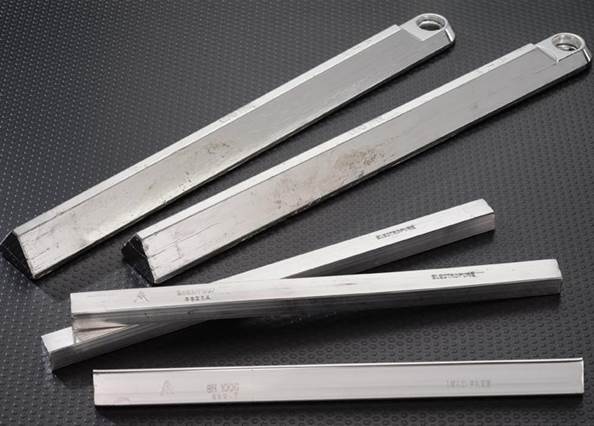

First-generation lead-free alloys include SAC305, a tin-silver-copper blend containing 3% silver and 0.5% copper. It became an industry standard due to its solid overall performance and availability across solder forms—paste, bar, and wire. However, SAC305 has its drawbacks. It is more expensive than tin-lead and less forgiving in terms of thermal stress and mechanical reliability.
Second-generation alloys were introduced in response to these concerns. They include low-silver options like SAC105 and SAC0307, as well as silver-free alternatives like SN100C®. These alloys reduce costs and, in some cases, offer benefits like lower dross formation or reduced copper erosion in wave soldering. However, they typically exhibit higher melting temperatures and, in some cases, lower mechanical strength.
Third-generation alloys take a fresh approach, leveraging elements such as bismuth, which were previously avoided due to lead incompatibility. As legacy leaded processes were phased out, alloys like AIM’s REL61 and REL22 offered significant advantages. REL61, for instance, lowers cost and improves performance compared to SAC305. REL22, on the other hand, is engineered for high reliability, rivaling tin-lead in harsh or mission-critical applications.
Matching the Alloy to the Application
Choosing the right alloy depends on both your process and your end-product requirements. Below are some general guidelines for when to use which type of alloy:
- General Lead-Free Applications: SAC305 remains a go-to due to its versatility and established track record. It’s available in virtually all solder product forms and is compatible with mixed Pb/Pb-free environments.
- Cost-Conscious, Reliable Wave Soldering: SN100C is a strong performer here. It reduces copper dissolution and dross formation, improving process stability. It also offers good mechanical performance and is often more economical than SAC305.
- All-Pb-Free, Cost-Sensitive Processes: REL61 provides a great balance of performance and value. Its bismuth content improves wetting and reduces voiding but makes it potentially incompatible with processes where any lead may be present.
- High-Reliability Applications: REL22 is designed for extreme environments—think automotive under-hood, aerospace, or industrial controls. It offers superior fatigue resistance and thermal stability but comes at a higher material cost.
- Low-Temperature Requirements: For temperature-sensitive assemblies, such as those using certain plastics or fragile components, Sn42/Bi57/Ag1 melts at just 138°C. It’s ideal where thermal stress must be minimized.
- Legacy or Exempt Sectors: Sn63Pb37 remains unmatched in many respects and continues to be used where RoHS exemptions apply. Its eutectic nature ensures predictable processing and strong, durable joints.
Final Thoughts: Choosing the Right Alloy
Selecting a solder alloy is not a one-size-fits-all decision. It requires balancing technical performance, cost, compliance, and compatibility with your existing processes.
As the industry continues to innovate, newer alloys like REL61 and REL22 are raising the bar in terms of performance, reliability, and value. Understanding the trade-offs between different compositions can help manufacturers optimize production, improve product longevity, and reduce total cost of ownership.
If you’re unsure which alloy fits your application best, consult with your solder supplier’s technical team. At AIM, we work closely with customers to evaluate process requirements and recommend materials tailored to their goals. Because when it comes to solder, the right alloy makes all the difference.
